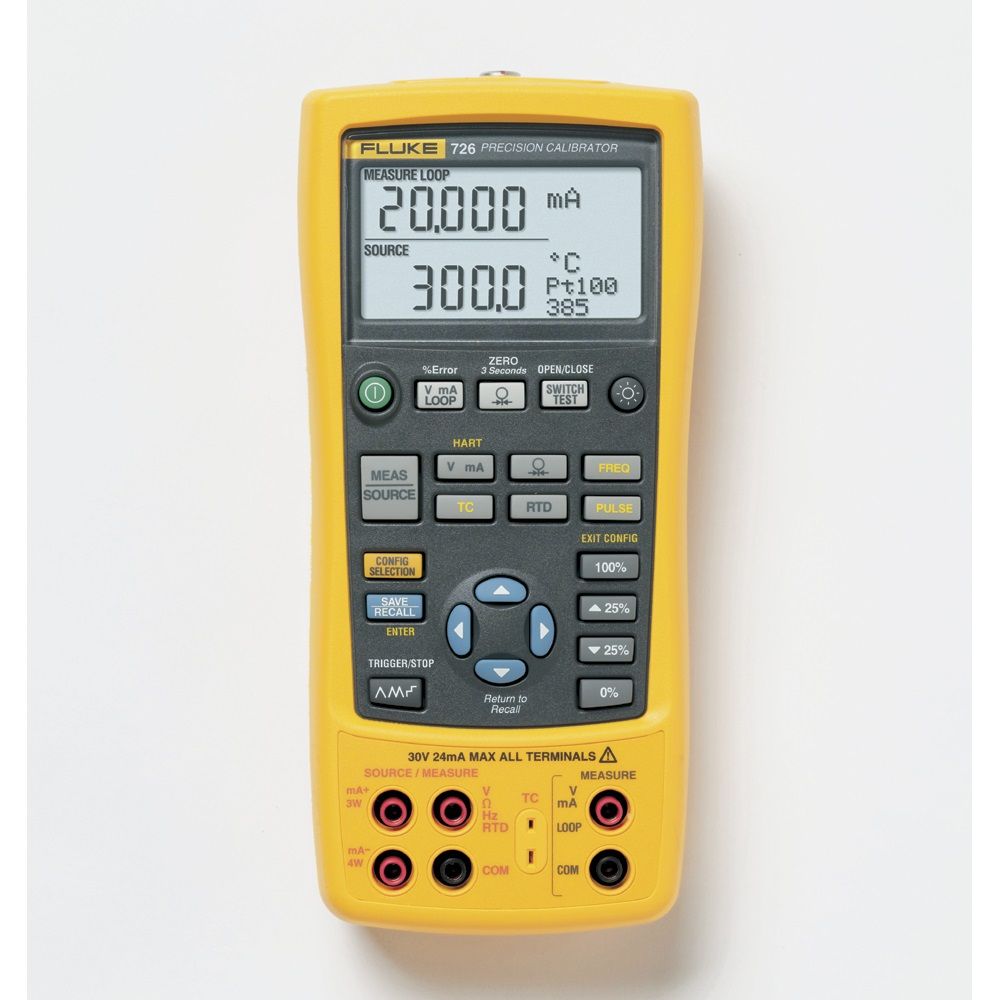

Fluke 726, Precision Multifunction Calibrator

The Fluke 726 Multifunction Process Calibrator includes HART mode, which inserts 250Ω resistor in mA measure nad source for compatibility with HART instrumentation. It equips you to test and calibrate almost any process parameter. Measure and source mA, volts, temperature (RTDs and thermocouples), frequency, ohms, and pressure, using optional pressure modules.

From the moment you pick it up, the Fluke 725 process calibrator is ready to perform. Its simple controls, without menus, make operation easy. Its memory functions make set up fast. And its rugged design lets it work as hard as you do.

Do you need to calibrate transmitters? The Fluke 725 split display lets you view input and output values simultaneously. For valve and I/P tests, you can source mA while measuring pressure. The 725 has auto-stepping and auto-ramping for remote testing, plus 25% stepping for fast linearity tests.

Key features of the Fluke 726 process calibrator are:

• More precise measurement and calibration source performance
• Transmitter error% calculation
• Memory storage for up to 8 calibration results
• Frequency totalizer and frequency pulse train source mode for enhanced flowmeter testing
• HART mode inserts 250Ω resistor in mA measure and source for compatibility with HART instrumentation
• Integrated pressure switch test allows you to capture the set, reset and deadband of a switch
• Custom RTD curves, add calibration constants for certified RTD probes for enhanced temperature measurement
• Two separate channels enables you to measure, source and view
       process signals simultaneously
• Measure volts, mA, RTDs, thermocouples, frequency and resistance to
       test sensors and transmitters
• Source / simulate volts, mA, thermocouples, RTDs, frequency and pressure
       to calibrate transmitters
• Measure or source pressure using any of 29 Fluke 700Pxx pressure modules
• Source mA with simultaneous pressure measurement to conduct valve and I/P tests
• Perform fast linearity tests with auto step and auto ramp features
• Power transmitters during test using 24V loop supply and simultaneous mA measurement
• Store frequently-used test setups for later use

The Fluke 726 process calibrator is supplied with TL75 Test Leads, AC72 Alligator Clips, One Pair of Stackable Test Leads, User Manuals on CD ROM, Yellow Rubber Holster & NIST traceable calibration certificate.
