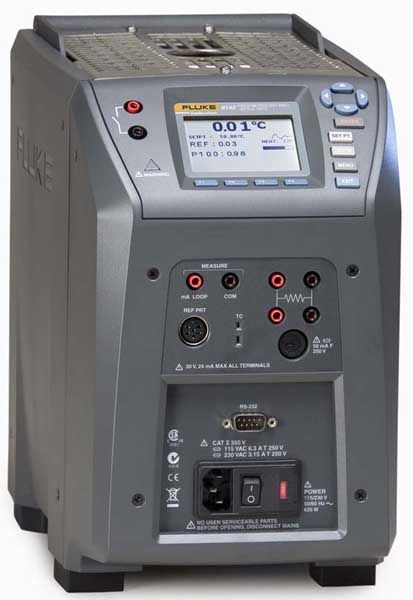

Fluke 9142

The Fluke 9142 is a highly accurate and portable field metrology well, with a range from -25°C to +150°C. Designed for fast and easy calibration of digital thermometers, the Fluke 9142 is available to purchase with a number of inserts to cater for most applications including thermocouple calibration, loop calibration of temperature transmitters, verification of industrial thermometers and testing of thermostatic switches.

A process option is available which includes a readout for resistance, voltage, 24V loop power and 4 - 20 mA current with on-board documentation, eliminating the need for a separate computer. With this option there is no need to carry around extra process calibration tools.

The wells are precise, stable and come complete with automated calibration routines for consistent calibration. The Fluke 9142 can be purchased with or without an insert and process electronics. Models are as follows, prices may vary depending on the model ordered, please contact us on 01923 442244 for a formal quotation:

• Fluke 9142-DW-256: No Insert
• Fluke 9142-DW-P-256: No Insert, with Process Electronics
• Fluke 9142-A-256: Fitted with Insert A
• Fluke 9142-A-P-256: Fitted with Insert A & Process Electronics
• Fluke 9142-B-256: Fitted with Insert B
• Fluke 9142-B-P-256: Fitted with Insert B & Process Electronics
• Fluke 9142-C-256: Fitted with Insert C
• Fluke 9142-C-P-256: Fitted with Insert C & Process Electronics
• Fluke 9142-D-256: Fitted with Insert D
• Fluke 9142-D-P-256: Fitted with Insert D & Process Electronics
• Fluke 9142-E-256: Fitted with Insert E
• Fluke 9142-E-P-256: Fitted with Insert E & Process Electronics
• Fluke 9142-F-256: Fitted with Insert F
• Fluke 9142-F-P-256: Fitted with Insert F & Process Electronics

View an image of the inserts here

Insert A: Misc. Imperial Holes
Insert B: Comparison Imperial Holes
Insert C: 0.25 Inch Holes
Insert D: Metric Comparison
Insert E: Metric Misc. Holes
Insert F: Metric Comparison with 0.25 Inch Hole
