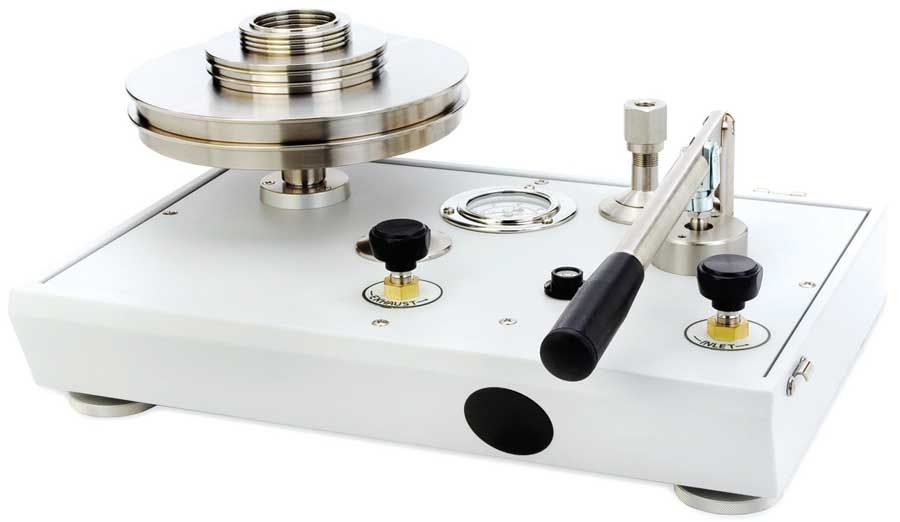

Fluke P3010 Series Deadweight Tester

This range of single piston deadweight testers are designed for calibration of pressure measuring devices used with gas applications. They are available in a number of different pressure units and each features a 1/4 NPT female external supply for connection of a gas supply source, such as a nitrogen bottle or compressed air.

The precision piston-gauge system allows for the masses to balance the upward force which creates pressure within the system. There are 3 standard masses included, each one is marked with the serial number of the unit and a nominal pressure value that is relative to the piston.

These deadweight testers can be specifically calibrated to local gravity, at no extra cost. This is because gravity varies and has a direct effect on the force of the weights, which in turn can affect the accuracy. If not specified, the standard gravity is set to 980.665 cm/s².

The optional PressCal software, a windows based program that allows for the entry of necessary corrections to enhance the performance of the deadweight tester. The calibration details are stored and used to create a calibration certificate. Using the software, the accuracy improves to 0.008%.

Key features include:

• Accuracy better than 0.015% of reading (improved to 0.008% with PressCal software)
• Different pressure units available
• Built-in pneumatic hand pump
• High quality needle valve for optimum control
• O-Ring design eliminates the need for wrenches or PTFE tape

There are a number of models in the range as listed below. Prices may vary depending on the model ordered, please contact us on 01923 442244 for a formal quotation:

• Fluke P3012-KPA-P: 100 kPa, with pump
• Fluke P3012-MBAR-P: 1000 mbar, with pump
• Fluke P3012-INH2O-P: 400inH2O, with pump
• Fluke P3013-KPA-P: 200 kPa, with pump
• Fluke P3013-MBAR-P: 2000 mbar, with pump
• Fluke P3013-INH2O-P: 800 inH2O, with pump
• Fluke P3014-BAR-P: 10 bar, with pump
• Fluke P3014-KGCM2-P: 10 kgf/cm2, with pump
• Fluke P3014-P3014-PSI-P: 150 psi, with pump
• Fluke P3014-KPA-P: 1000 kPa, with pump
• Fluke P3014-MPA-P: 1 MPa, with pump
• Fluke P3014-KGCM2-P: 10 kgf/cm2, with pump
• Fluke P3015-BAR: 35 bar, no pump
• Fluke P3015-BAR-P: 35 bar, with pump
• Fluke P3015-KGCM2: 35 kgf/cm², no pump
• Fluke P3015-KGCM2-P: 35 kgf/cm², with pump
• Fluke P3015-PSI: 500psi, no pump
• Fluke P3015-PSI-P: 500psi, with pump
• Fluke P3015-KPA: 3500 kPa, no pump
• Fluke P3015-KPA-P: 3500 kPa, with pump
• Fluke P3015-MPA: 3.5 MPa, no pump
• Fluke P3015-MPA-P: 3.5 MPa, with pump
