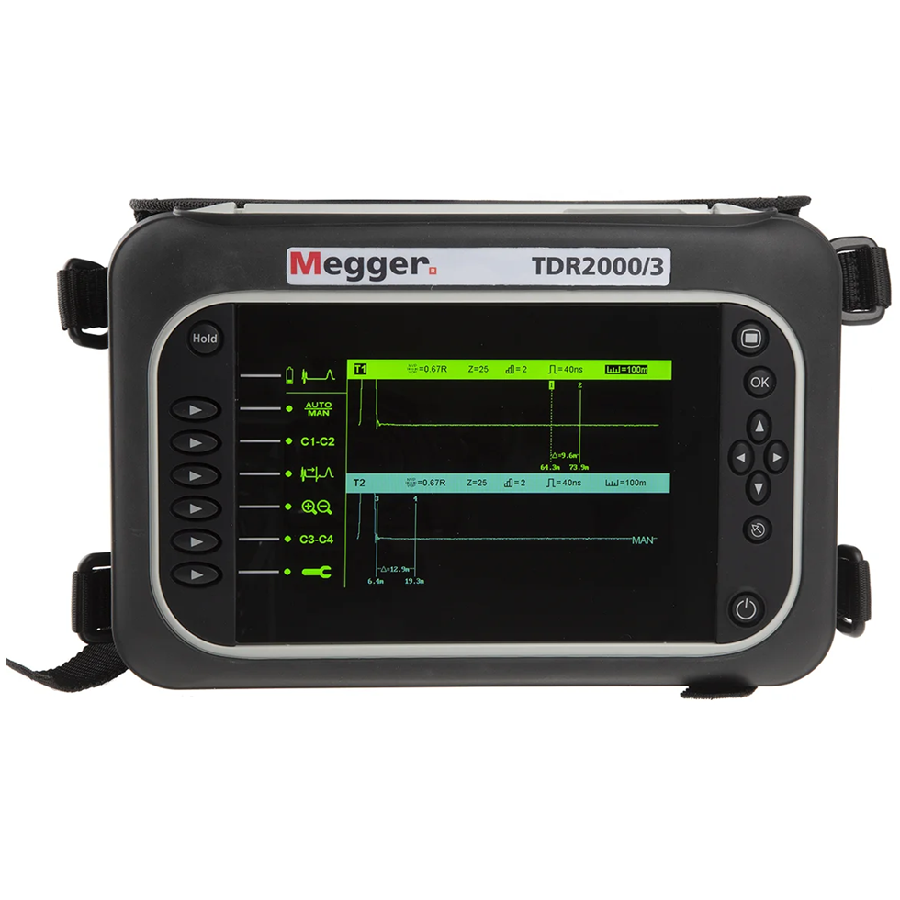

The TDR2000/3 is a high-resolution dual-channel Time Domain Reflectometer built for accurate fault location on metallic paired cables. With a bright backlit display and AutoFind feature, it delivers quick and clear trace analysis across telecoms, LV power, and lighting circuits. It's a solid choice for electricians who need a reliable, everyday TDR for de-energised systems.
Models:
The TDR2000 series is available in 4 models.
TDR2000/3: A fully featured high resolution TDR with backlit colour display and powered by Li-ion rechargeable battery batteries. This model comes complete with 2 pairs of mini-clip Test Leads.
TDR2000/3P: The same as the TDR2000/3 but with Dual fused test leads replacing the mini-clip leads.
TDR2010: The same as the TDR2000/3 but with Trace Tagging and additional Colour Scheme selection.
TDR2050: The same as TDR2010 but with the addition of 600 V CAT IV rating, Step, DDG and FindEnd functions
Order today to enjoy free delivery, expert support and our 90-day satisfaction guarantee. Need advice? Our team is here to assist you.
Input Protection / Safety Rating: Rated to 150 V CAT IV (for use on de‑energised circuits); IEC61010‑1 compliance
Battery: Li‑ion rechargeable; typical 12 hours use; ~6 hour charge time (0 °C to 40 °C)
Memory / Storage: Up to 100 trace storage onboard; USB upload/download via TraceXpert software
Display: 800 x 480 pixel colour graphics LCD with backlight and selectable colour schemes
Connectors: Four 4 mm safety terminals + two F‑connectors (standard push‑on adaptors also fit)
Test Leads Supplied: 2 pairs of 2 m mini‑clip leads (shrouded 4 mm to mini crocodile clips)
IP / Environmental Rating: IP54 (dust & splash resistant) for indoor/outdoor use
Case / Dimensions: ABS housing; 290 mm × 190 mm × 55 mm
Weight: 1.7 kg
Operating Temperature Range: –15 °C to +50 °C
Storage Temperature Range: –20 °C to +70 °C
Other Features: Auto setup / AutoFind / manual override; trace tagging; dual trace / dual cursor; distance dependent gain; step mode for near‑end faults; programmable auto power-off (1, 5, 10 min or off)
