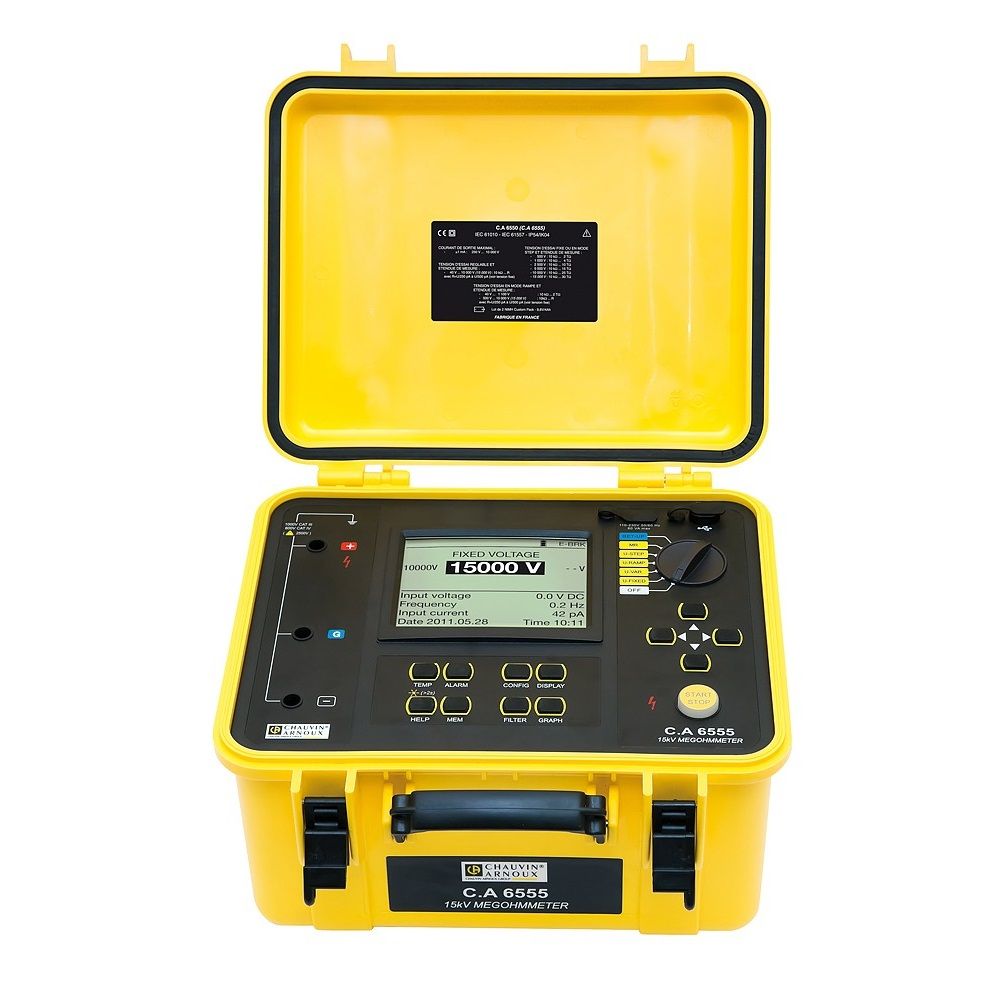

Chauvin Arnoux CA6555, HV Insulation Tester (15kV)

With its site-proof casing, the C.A 6555 insulation tester is used to check equipment insulation during manufacturing, on-site installation work, periodic inspections and recommissioning of installations.

They are ideal for electricity companies, manufacturers, installers, maintenance firms, industry, R&D centres and infrastructure.

Specially adapted for checking insulation on rotating machinery with a 12 kV power supply or higher, the C.A 6550 complies with the IEEE43
standard which recommends testing insulation at 5-10 kV.

Functions and specifications:

• Wide measurement range from 10 kΩ to 25 TΩ
• Fixed or programmable test voltage from 40V to 15 kV
• 5mA max. charging current
• Large backlit LCD screen with digital display, bargraph and R(t)+u(t), i(t) and i(u) graphs
• Automatic ratio calculation: DAR / PI / DD / DR (ppm/V)
• Multiple test modes: voltage ramp and step with "burning", "early break" and "I-limit" modes
• 3 filters to optimize measurement stability
• Calculation of R at a reference temperature
• 80,000-measurement storage capacity and real-time clock
• Optically-isolated USB communication for transfer onto PC and report generation with DataView® software
• Power supply NiMH rechargeable battery with external charger
• Compliant with IEC 61557 -1 -2
• Electrical safety: IEC 61010 1000V CAT IV
• mensions: 406 x 330 x 174 mm / 6 kg
