Everything you need in one tester, the Megger MFT1720 is one of the most popular multifunction testers on the market and it's not difficult to see why. Designed with the user in mind, test selection is made quickly by using the dials on the front, no need for multiple button pushing or tricky menu navigation.
The Megger brand is associated with robust and rugged design and the MFT1720 is no exception. It's IP54 rated and can be connected across phases without any damage occurring. Drop it, bounce it or use it in the rain, the MFT1720 will still keep going. Your safety is of paramount importance in the design of this tester, therefore it won't go bang if the wrong test range is selected, or if it is connected to a live circuit by accident - even if the test button has been locked on!
This multifunction unit has a comprehensive range of 17th Edition tests, ideal for the domestic and commercial electrician alike.
Non-Trip & High Current Earth Loop Testing Featuring Megger's unique two wire loop testing method, you can easily carry out a non-trip L-PE test (3 wire option also available), or high current L-L / L-N test. It features a resolution of 0.01Ω and performs the PSC / PFC test at the same time, simultaneously displaying the results.
Continuity & Resistance Testing The MFT1720 has the option to perform a standard 200mA or low current 15mA continuity test with auto-start and a resistance range from 0.01Ω to 99.9kΩ. The buzzer is not only fast, but also has an adjustable threshold. In addition, once test leads have been nulled, the results will remain in the tester, even when it's been turned off.
Insulation Test 3 standard ranges are available, 250V, 500V & 1000V, with the test voltage being displayed alongside the resistance measurement. The buzzer threshold is adjustable and protection is built-in for live circuits up to 600V (even if the test button is locked on).
RCD Test The auto-RCD test feature is a must for most electricians, so the MFT1720 includes this along with the standard trip time tests. A wide range of RCD types can be tested, including AC, A, Selective, Programmable and 3 Phase. Finally there is a ramp test option, ideal for pinpointing the exact current that the RCD will trip.
Other Electrical Tests To complete the arsenal of tests, the MFT1720 includes voltage measurement from 10V to 600V AC / DC, frequency measurement from 15 - 400Hz and Phase Rotation.
Watch the product demonstration video, presented by Megger, below:
Accessories
Specification
Insulation Test
Ranges: 250V, 500V & 1000V
Test Voltage Display
Adjustable Buzzer Threshold
Continuity & Resitance
200mA & 15mA Test Current
Easy Lead Null
Auto-Reverse Continuity Test
Adjustable Buzzer Threshold
Loop Testing Ranges
2 Wire Non Trip Loop Test L-PE
PFC Measurement Displayed with Loop Resistance
L-PE 48V to 280V, 45Hz to 65Hz
High Current Testing L-L and L-N
L-L 48V to 480V, 45Hz to 65Hz
20kA Fault Current
Zmax Value
R1 + R2 Value
touch Voltage Display 0 - 230V
RCD Testing
1/2I, I and 5I Test
0° + 180° Phase Angle
Auto RCD Test
Fast Ramp Test
Type AC, A, S RCDs
Programmable RCDs
3 Phase RCDs
Voltage & Frequency
6V - 600V AC / DC Voltage
Frequency Range: 15Hz - 400Hz
Phase Rotation
Intelligent Safety System
Test Lockout
Safe Contact Detector
Live Circuit Warning
Auto Discharge
Analogue Arc Display
Additional Information
Bright Easy-to-Read LCD Display
Current Measurement with Optional Clamp
Free Megger Calibration Certificate
Free Warranty Upgrade to 3 Years
Dust & Weatherproof to IP54
CAT IV 300V Safety Rating

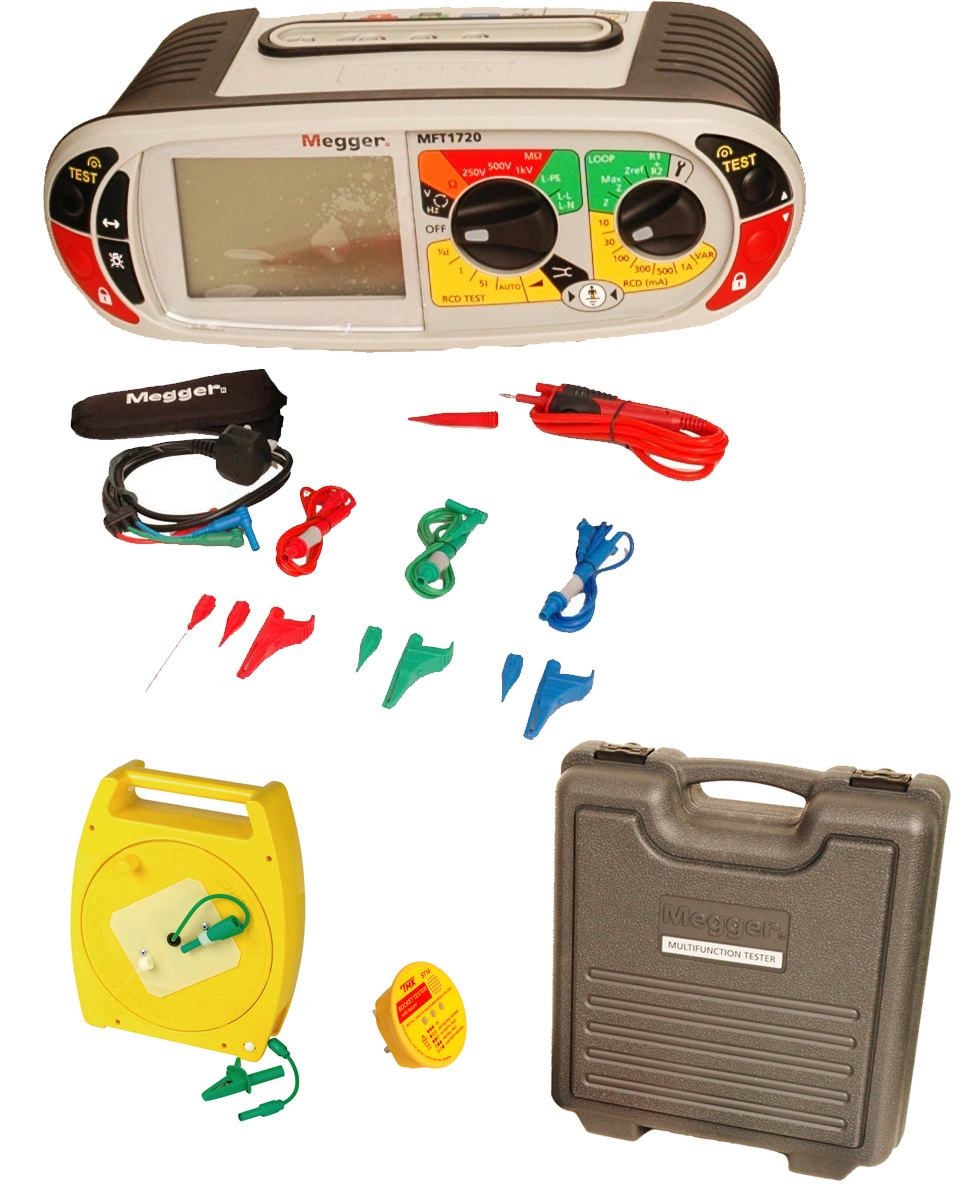

Item Contents
Megger MFT1720
Martindale R2 Socket Adaptor
Martindale 50m Earth Wander Lead
3 Wire Unfused Test Leads with Crocodile Clips
Mains Test Lead
6 x AA Alkaline Batteries
Instruction Manual on CD ROM
Carry Strap
Hard Carry Case
Calibration Certificate
3 Year Warranty
