Instrotech Code: SEAPRIME250 - £379.00
The first handheld PAT with dedicated 3 phase appliance tests.

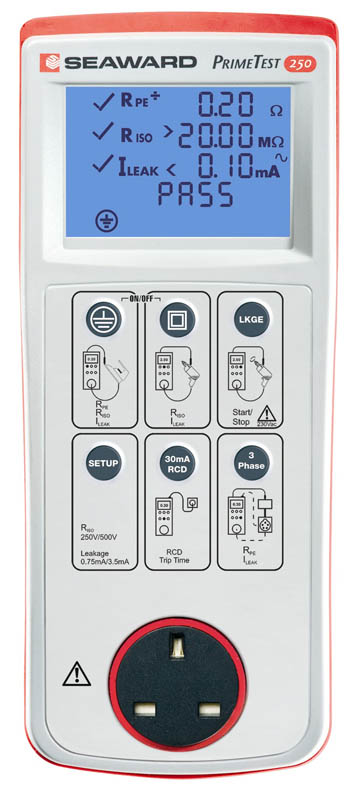

The NEW Seaward Primetest 250 portable appliance tester is an innovation from Seaward. Not only does this lightweight, handheld PAT tester carry out all the required tests for standard Class I & Class II appliances, its unique design also includes tests for RCDs and 3 phase appliances (extra adaptors required).

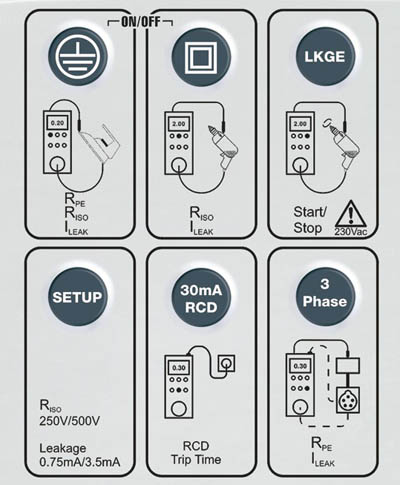

This easy-to-use portable appliance tester features a one button test process for Class I, Class II & Leads, with optional test buttons for leakage, RCDs and 3 Phase testing. The Seaward Primetest 250 improves on the features of the Primetest 100, adding the ability to change the pass thresholds for leakage, and change the insulation voltage to 250V.
Carrying out IT equipment tests with the Seaward Primetest 250
The Primetest 250 portable appliance tester performs an earth bond test at 200mA, which is completely safe for IT equipment, in addition tester also features a 250V insulation test, which enables you to test any surge protected devices.
Specification
Earth Bond Test (IT Safe)
Test Currents: +/- 200mA DC
Display Range: 0.00ohm - 19.99ohm
Pass Value: 0.2ohm
Insulation Resistance
Test Voltage: 250 / 500V DC
Display Range: 0.01Megohm - 19.99Megohm
Pass Value: 1Megohm Class I, 2Megohm Class II
Equivalent Leakage
Test Voltage: 40V Nominal AC, 50Hz Open
Test Duration: 2s - 30s nominal
Display Range: 0.1mA to 19.99mA
Pass Value: 0.75mA Class I, 0.25mA Class II
Protective Conductor Current
Test Voltage: Supply Voltage, max current 13A
Test Duration: 30s Max
Display Range: 0.15mA - 9.99mA
Pass Value: 0.75mA / 3.5mA (User Selectable with 0.75mA as default)
Touch Current
Test Voltage: Supply Voltage, max current 13A
Test Duration: 30s Maximum
Display Range: 0.10mA - 5.00mA
Pass Value: 0.25mA
IEC & Extension Lead Test
Earth Continuity: +/- 200mA DC
Insulation Test: 500V DC
Wiring Test: Live, Neutral Continuity & Polarity
3 Phase Differential Leakage
Test Voltage: 3 phase supply voltage
Test Duration: Continuous Measurement
Display Range: 0.10mA to 9.99mA
Pass Value: 3.5mA
RCD Trip Time
Test Voltage: Mains Supply Voltage
Test Current: 10mA / 30mA rms sinosidual
Test Current Phase: 0° / 180° auto switched on alternate tests
Display Range: 0ms - 500ms
Pass Value: 200ms
Power Socket Test
Input Voltage Range: 225 - 254V AC max current 13A UK
Indicators: Phase to Earth Voltage, Phase to Neutral Voltage, Neutral to Earth
