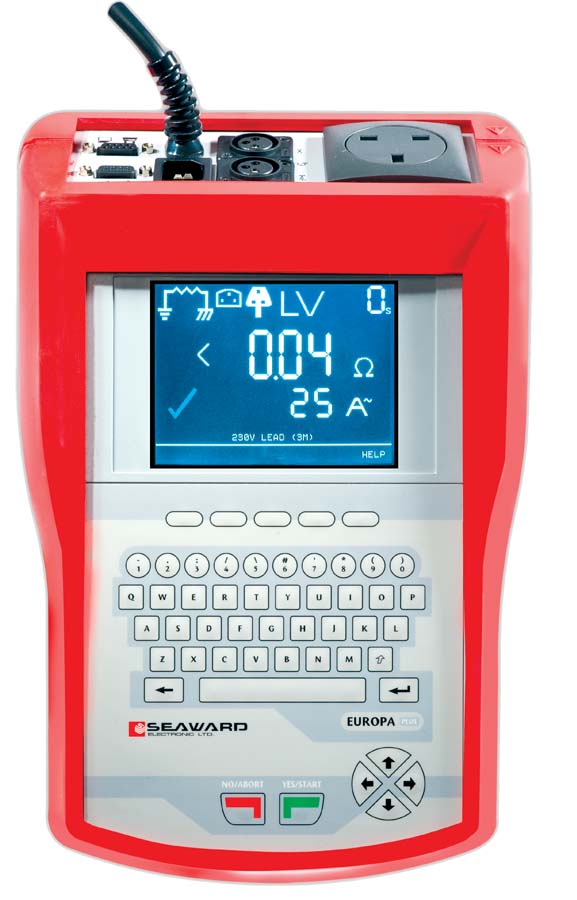

Instrotech Code: SEAEUROPAPLUS - In Stock - £674.00
The most popular downloading PAT tester, Designed for all types of PAT contractor, schools, offices and people who have a large number of appliances to test.
The versatility of the Europa Plus is shown with its comprehensive test features for 240V appliances and basic tests for 110V. It features an IT safe earth bond test and a 250V insulation test for surge protected leads and appliances.
With easy to understand help screens, and pre-programmed tests, the Seaward Europa Plus is ideal for both inhouse and commercial PAT testing. Whether you're new to PAT testing, or an experienced tester, the Europa Plus makes testing fast, simple and efficient.
The Europa Plus can be connected with other accessories, such as the Test & Tag Printer and CCD Barcode Scanner, to make labelling and data entry even easier. Further details of all accessories available are at the bottom of the page.
Key features of the Seaward Europa Plus include:
- User programmable Pass / Fail limits
- Built-in Lead Limit calculator, making testing of long leads simple
- QWERTY Keypad
- Stores Up To 6000 Results
- Separate Memory Chip Allows Upload Of Data From PATGuard Elite
- Help Screens For Ease Of Use
Specification
Earth Bond Test
Test Currents: 25A AC, 10A AC, 4A AC, +/- 200mA DC (IT Safe)
Display Range: 0.00ohm - 19.99ohm
Pass Value: User Defined
Measurement Technique: 4 Wire Measurement, Floating Earth
Earth Screen Continuity
Test Currents: +/- 100mA
Display Range: 0.00ohm - 19.99ohm
Pass Value: User Defined
Measurement Technique: 4 Wire Measurement, Floating Earth
Insulation Resistance
Test Voltage: 250V, 500V DC
Display Range: 0.1Megohm - 100Megohm
Pass Value: User Defined
Protective Conductor Current
Test Voltage: 230V
Display Range: 0.1mA - 19.99mA
Pass Value: User Defined
Touch Current
Test Voltage: 230V
Display Range: 0.1mA - 2.0mA
Pass Value: User Defined
Substitute Leakage
Test Voltage: 40V AC Nominal
Display Range: 0.1mA - 19.99mA
Pass Value: User Defined
Load Test
Display Range: 0kVA - 4.2kVA
IEC & Extension Lead Test
Earth Continuity: 25A AC, 10A AC, 4A AC, +/- 200mA DC
Insulation Test: 250V, 500V DC
Wiring Test: Live, Neutral Continuity & Polarity
Pass Value: User Defined with Built-in Lead Limit Calculator
