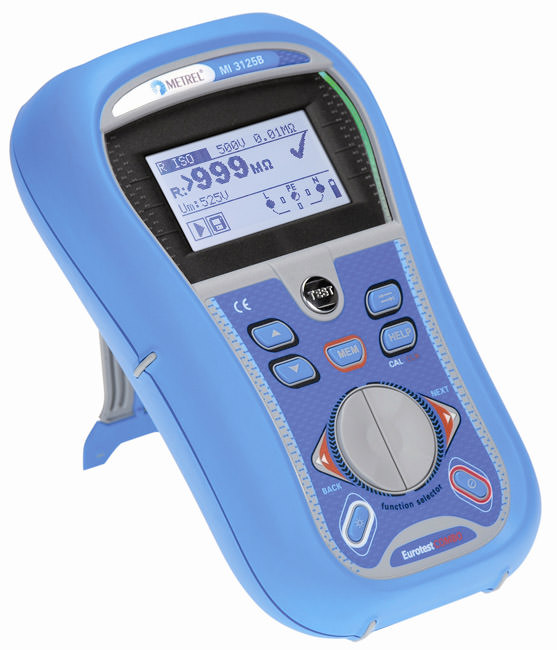

Metrel MI3125 Combo Lite

Eurotest Multifunction Tester

Metrel MI3125 Combo Lite
general image
  £399.00  (£478.80  Inc. VAT)
  List Price: £549.00  Saving You £150.00
Calibration
  Quantity:
free next day delivery for this item
Print Page     Bookmark this page     Product Datasheet
general image
general image
Instrotech Code: ALPMI3125COMBOLITE      -     In Stock      -     £399.00




The Metrel MI3125 Combo Lite is a compact, 17th Edition tester, feature packed to give you the most value for money. This is a basic version which is supplied test leads and soft carry case.

Designed to be quick and easy-to-use, the Metrel 3125B Combo Lite has integrated characteristics of fuses and RCDs enable automatic evaluation of Line / Loop impedance and the large graphical, backlit display ensures the results, indications, measurement parameters and messages are clearly visible to you. A unique feature of this 17th edition tester is the addition of red and green LEDs on either side of the display, giving a clear, visual indication of a pass or fail, compared to the user set or automatic limits.

Help screens are provided with each test, indicating how to connect the tester and perform the measurement.

The Metrel 3125 Eurotest Combo T is supplied with:

  • MI3125 Multifunction Tester
  • Mains Test Lead
  • 3 x Test Leads with Probes & Crocodile Clips
  • Rechargeable NiMH Batteries
  • Mains Charger Adaptor
  • Carry Strap
  • Soft Carry Case
  • Quick Start Manual
  • User Manual on CD ROM
  • Calibration Certificate
  • 3 Year Warranty
  • Accessories

    Specification

  • Insulation: DC voltage 100 - 1000 V, 0 - 999 MΩ
  • Continuity: Automatic R1 + R2 Testing, R low 200 mA DC, Range 0 - 1999 Ω, Automatic polarity swap
  • Line impedance measurement
  • Loop impedance measurement (Ze & Zs)
  • High accuracy Non Trip loop test
  • Built-in loop impedance tables for automatic PASS/FAIL decision
  • RCD type (general & selective) A, AC, - 10, 30, 100, 300, 500, 1000 mA
  • RCD trip time measurement
  • RCD Ramp test
  • RCD auto test
  • Real-time AC voltage measurement
  • Simultaneous voltage measurement over 3-phases
  • Frequency measurement
  • Phase Rotation
  • Two & Three Wire Earth Resistance Test (Spike Kit required)
  • Touch Electrode Warning & Help Menu
  • Frequency span 45 - 65 Hz
  • Supports reduced 55 / 65 V systems
  • TN/TT and IT earthing system mode
  • Help menu
  • Safety Category: CAT IV / 300V, CAT III / 600V
  • Built In Battery Charger
  • Weight: 1kg
  • Size: 230 x 140 x 80mm
