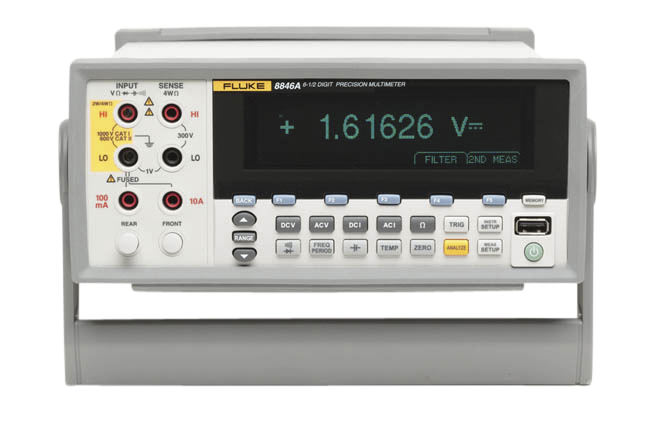

Instrotech Code: FLU8846A - £1,005.00
the Fluke 8846A adds temperature and capacitance functionality, making it the ideal multimeter for use in calibration laboratories, R & D applications or for any application that requires precise and reliable readings.
The meter features a graphical display that can display realtime statistics via TrendPlotTM. Signal quality problems, such as drift, are easily displayed and tracked. Analyse mode will also show a histogram or statistics.
This bench multimeter has a wide range of measurement parameters including 1000V AC/DC, 10A AC/DC, 1GΩ resistance, 1 MHz frequency, 1nF to 100mF capacitance and up to 600°C temperature measurement. Data can be downloaded to the optional PC software via the RS-232 port. Additional, IEEE-488 and ethernet interfaces are also included as standard. Popular DMM emulation modes are also built-in, making integration quick and easy.
Fluke have patented split terminal jacks, a 2 x 4Ω function allows precise measurements, using only two leads. Optional kelvin leads are available, enabling you to carry out 4 wire measurements in tight spaces.
With the optional FlukeView Forms software, you can transfer data to a PC, analyse the information and create your own customised reports.
The Fluke 8846A is available in the following configurations:
- Fluke 8846A: Standalone unit with standard accesories
- Fluke 8846A/SU: Adds the Fluke FVF-SC4 Software Package
Specification
DC Voltage
- Range: 1000V
- Resolution: 100 nV
- Accuracy: 0.0024%
AC Voltage (Freq 300Hz)
- Range: 750V
- Resolution: 100 nV
- Accuracy: 0.06%
Resistance (2 x 4 wire)
- Range: 100GΩ
- Resolution: 10µΩ
- Accuracy: 0.01%
Current DC
- Range: 10A
- Resolution: 100pA
- Accuracy: 0.05%
Current AC (Freq. 3Hz - 10kHz)
- Range: 10A
- Resolution: 100pA
- Accuracy: 0.10%
Frequency / Period
- Range: 1 MHz
- Resolution: 1 µHz
- Accuracy: 0.01%
Capacitance
- Range: 1 nF to 0.1F
- Resolution: 1 pF
- Accuracy: 1%
Temperature RTD
- Range: -200° to +600°
- Resolution: 0.001°
- Accuracy: 0.06%
General Specifications
- Display: Dual VFD Dot Matrix
- Resolution: 6.5 Digits
- Measurement Rate (rdgs / s): 1000
- Continuity & Diode Test
- Analytical Functions: Statistics, Histogram, TrendPlotTM, Limit Compare
- Math Functions: NULL, Min / Max, dB / dBm
- USB Device Port: Connect a USB Memory Drive
- Real Time Clock
- Interfaces: RS232, IEEE-488.2, Ethernet
- Programming Languages / Emulation Modes: SCPI (IEEE-488.2), Agilent 34401A, Fluke 45
- Warranty: 3 Years
- Weight: 3.6kg
- Dimensions: 88 x 215 x 293mm
