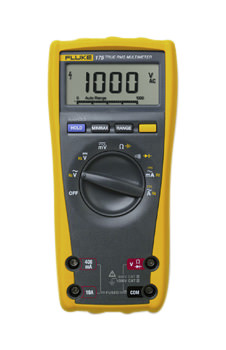

Fluke 175

The Fluke 175 multimeter has the features needed to troubleshoot most electrical, electro-mechanical and heating and ventilation problems. The quality of build and reliability is as you would expect from a Fluke multimeter, and this is backed up with a limited lifetime warranty.

The Fluke 175 multimeter has the following features:

AC True-RMS Measurement

6000 Count Digital Display

Analog Bargraph / 33 Segments, updates 40 times per second

Auto and Manual ranging

Display Hold & AutoHOLD®

Min / Max / Average recording mode with Min / Max Alert

Smoothing Mode allows filtering of rapidly changing inputs

Audible Continuity & Diode Test

Test Lead Alert

Unsafe Voltage Alert warns for voltages above 30V

Low Battery Indication

Ergonomic Case with integrated holster

Easy Battery and Fuse exchange without opening the complete case

Selectable sleep mode preserves battery life

The Fluke 175 Digital Multimeter is supplied with:

TL76 Test Leads with Protective Caps

9V Battery

Instruction Manual

Yellow Rubber Holster

Voltage AC: 1000V, 1mV resolution. Accuracy +/-1.0% +3 digits

Voltage DC: 1000V, 1mV resolution. Accuracy +/-0.15% +2 digits

Current AC: 10A, 0.01mA resolution. Accuracy +/- 1.5% +3 digits

Current DC: 10A, 0.01mA resolution. Accuracy +/- 1.0% +3 digits

Resistance: 50MΩ, 0.1Ω resolution. Accuracy +/- 0.9% +1 digits

Capacitance: 9999µF, 1 nF resolution. Accuracy +/- 1.2% +2 digits

Frequency: 100kHz, 0.01Hz resolution. Accuracy +/- 0.1% +1 digit

Click on a link below to view the application note in pdf format

Dual Impedance Multimeters

ABC of DMM Features

ABC of DMM Safety

Choosing the Right Fuse

Detecting Intermittents with a DMM

DMMs in Antarctica

HVAC Service Tips

Making Electrical Measurements Easy

Marine Testing Corrosion

Marine Engine Troubleshooting

Outboard Motor Troubleshooting

Rectifier Testing

Under Utilized DMM

Why True RMS
