Fluke 1653B Starter Pack
Multifunction Tester with Free R2 adaptor & 50m Wander Lead
|
|
|
|
|
  |
|
  |
|
|
|
|
|
|
Instrotech Code: FLU1653 - In Stock - £655.00
Buy the Fluke 1653B and you'll also get a free 50m wander lead and R2 socket adaptor.
The Fluke 1653B is the ideal multifunction tester for the commercial and domestic electrician alike. It has a comprehensive range of tests for certification of 17th Edition installations and also has a memory for results storage. Test results can be downloaded to the Fluke DMS Installer Software (standard or professional versions) and printed out on to plain paper BS7671 certificates, or to NIC stationery.
As an additional feature, the Fluke 1653B has the capability to carry out an earth ground resistance test, using the optional earth spike kit (Fluke ES165X), making this unit excellent value for money when compared to competing models.
- Performs Insulation test at 50, 100, 250, 500 or 1000V.
- Non-trip loop test won't trip out RCDs, and now the B version also includes a high current loop test.
- Auto RCD test, Ramp test & RCD trip time test with variable RCD current mode for customised settings & Pass / Fail indication.
- PEFC / PSC (PFC / PSCC) & loop measurements are displayed at the same time
- Earth resistance test (optional spike kit required).
- Phase rotation.
- Live voltage indicator and wiring polarity checker.
- Free manufacturers calibration certificate included
- 3 Year manufacturers warranty
The Fluke 1653B series now includes a unique adaptor to null out the mains test lead, and fast voltage measurement between L-N, L-PE and N-PE using the mains lead - no need to change measurement connections.
Where a tester is offered with a free manufacturers calibration certificate, this is issued at the time of manufacture and is valid from the date the equipment is commisioned into use. We offer an option of having the unit calibrated on the day of purchase for those who require it, and as such is charged at the rate shown.
Specification
Supply Voltage Measurement
Voltage AC: 0V - 500V, 50/60 Hz, 0.1V Resolution
Mains Socket Test: L-PE or L-N Reverse
Insulation Test Ranges
Short Circuit Current: <2mA
50V: 0.01MΩ - 50MΩ
100V: 0.01MΩ - 100MΩ
250V: 0.01MΩ - 200MΩ
500V: 0.01MΩ - 500MΩ
1000V: 0.01MΩ - 1000MΩ
Accuracy: +/- 3%, +/- 3 digits up to 99MΩ
250, 500 & 1000V into 1mA
Output Voltage: +20% - 0% at rated load or less
Live Circuit Warnings
Insulation: User Selectable 25V or 50V threshold with visual warning
Continuity: >10V threshold
Audible Continuity
Ohms: 0.01Ω - 2000Ω (+/- 1.5%, +/- 3 digits)
Autoranging limits of 20Ω, 200Ω, 2000Ω
Test Current: >200mA @ 2Ω
Test Lead Null: Up To 2Ω (zero uses test button)
Loop Test Ranges
Line / Earth Single Phase 12A: 0.01Ω - 20Ω (Non Trip: +/- 3%, +/- 6 digits; High Current: +/- 2%, +/- 4 digits)
0.1Ω - 200Ω (Non Trip: +/-3%; High Current: +/-2%)
1Ω - 2000Ω (+/- 6%)
Phase to Phase 20A: 0.01Ω - 19.99Ω (+/- 3%, +/- 4 digits)
0.1Ω - 200Ω (+/- 2%)
1Ω - 2000Ω (+/- 6%)
Supply: 55V - 480V, 45Hz to 65Hz
Supply: 55V - 270V, 45Hz to 65Hz
Prospective Shortcircuit Current PSC
Prospective fault current = nominal voltage / loop resistance
Range: 0 - 10kA or 0 - 50 kA
RCD Ranges
Supply: 100V - 265V, 45Hz to 65Hz
Ranges: 1000mA, 500mA, 300mA, 100mA, 30mA, 10mA
Type: 1/2I, I, 5I
Ramp Test
Current Accuracy:
No Trip (1/2I): 0% to -10% of test current
Trip (I and 5I): +10% to 0%
Trip Time Accuracy: +/- 1%, +/- 1ms
Selection: 25V or 50V
Power Supply
6 x 1.5 Alkaline Cells Type LR6
Battery Life: 3000 continuity tests
Phase Rotation
Mains Input Voltage: 100 to 500V
Earth Resistance Test
Range: 200Ω, 0.1Ω Resolution, +/- 2% + 5 digits
2000Ω, 1Ω Resolution, +/- 3.5% + 10 digits
Frequency: 128 Hz
Output Voltage: 25V

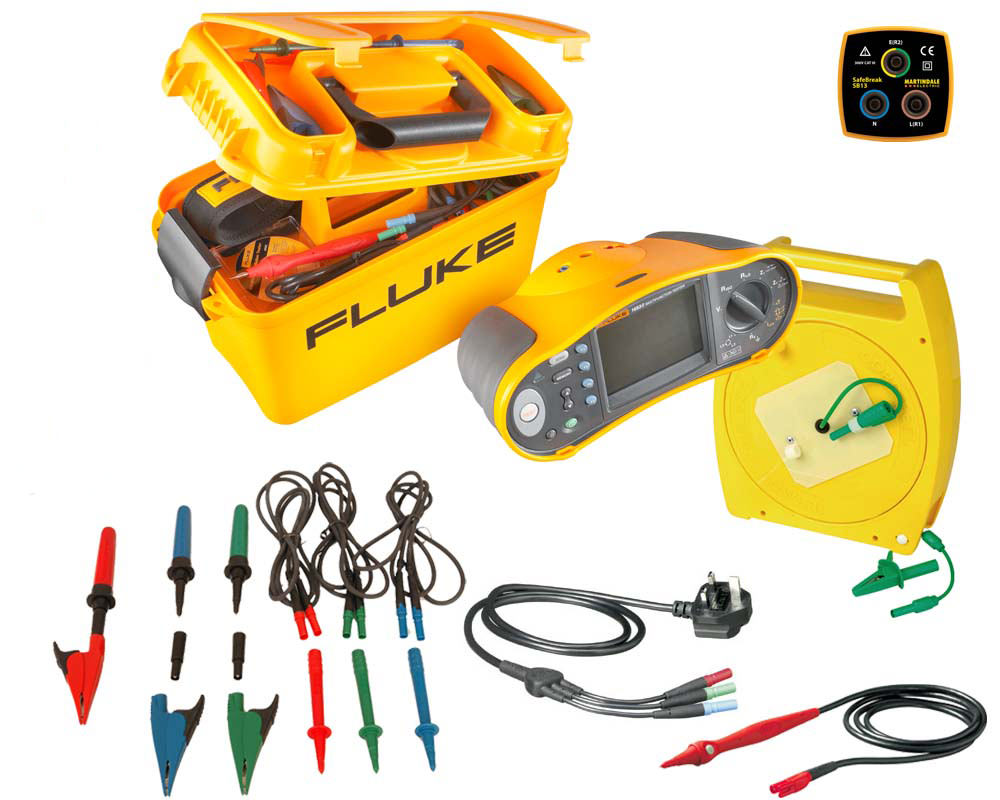

Item Contents
Fluke 1653B Multifunction Tester
Martindale SB13 R2 socket adaptor

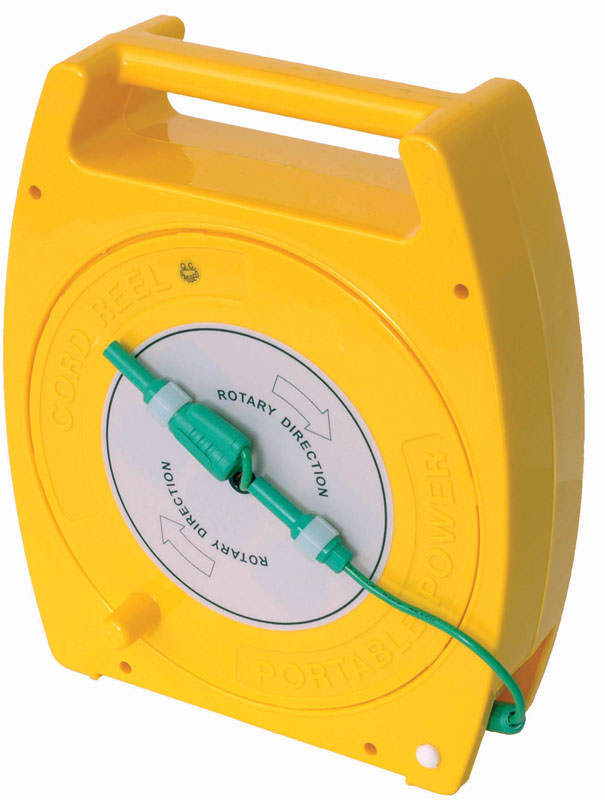

Martindale TL78 50m Wander Lead
3 way fused test lead set with crocodile clips
Test probe with test button
Mains test lead
Mains lead null adaptor
Neck strap
Printed quick start guide
Instruction manual on CD ROM
Fluke 1653B Calibration certificate
Hard carry case
|
|
|
|
 |
