Instrotech Code: FLU1550C_KIT - £2,572.00

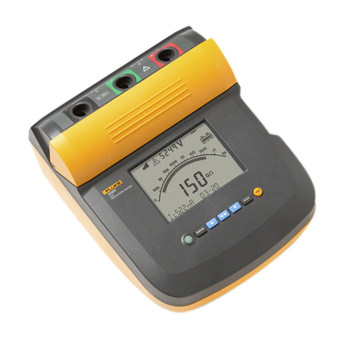

The NEW Fluke 1550C kit is a 5kV insulation tester that supersedes the old Fluke 1550B model. The kit is supplied with an IP67 carry case, heavy duty crocodile clips and calibration certificate. This high voltage, digital insulation tester is ideal for testing a wide range of cables, high voltage equipment including switchgear, motors and generators.
With the new Fluke 1550C insulation tester, you can now carry out tests up to 5kV as specified in IEEE 43-2000. The Fluke 1550C also has a CAT IV 600V safety rating, and is backed with a 3 year warranty. Test results can be stored to internal memory and downloaded to PC software, assisting with predictive and preventative maintenance programs, designed to identify potential faults before they occur.
Key features of the Fluke 1550C 5kV insulation tester are:
CAT III 1000V, CAT IV 600V Safety Rating
Voltage breakdown detection alerts the user that voltage is present and gives the voltage reading up to 600V AC or DC for increased user safety
Selectable test voltages in 50V steps from 250V to 1000V and 100V steps above 1000V
Measurements can be stored in up to 99 memory locations with each location assigned a unique, user defined label for easy recall
Long battery life gives the user over 750 tests between charges
Automatic calculation of dielectric absorption ratio (DAR) and polarisation index (PI) with no additional setup
Guard system eliminates the effect of surface leakage current on high resistance measurements
Large digital / analog LCD for easy viewing
Capacitance and leakage current measurement
Ramp function for breakdown testing
Resistance measurements up to 2TΩ
Timer settings up to 99 minutes for timed tests
3 year warranty
This high voltage, insulation resistance tester is ideal for engineers, maintenance managers, industrial electrical contractors & substation specialists.

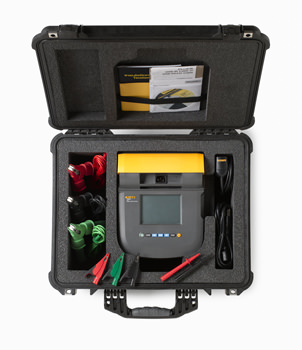

The Fluke 1550C Kit comes supplied with:
Test cables with heavy duty alligator clips (red, black & green)
Infrared adaptor with PC interface
FlukeView Forms Basic software on CD ROM
AC Mains Lead
IP67 Hard Carry Case
Manual on CD ROM
Quick Reference Guide
English Manual
USB-IR Cable Installation Guide
FlukeView Forms Installation Guide
Calibration Certificate
Applications
Click on a link below view the application notes in pdf format.
Predictive Maintenance
