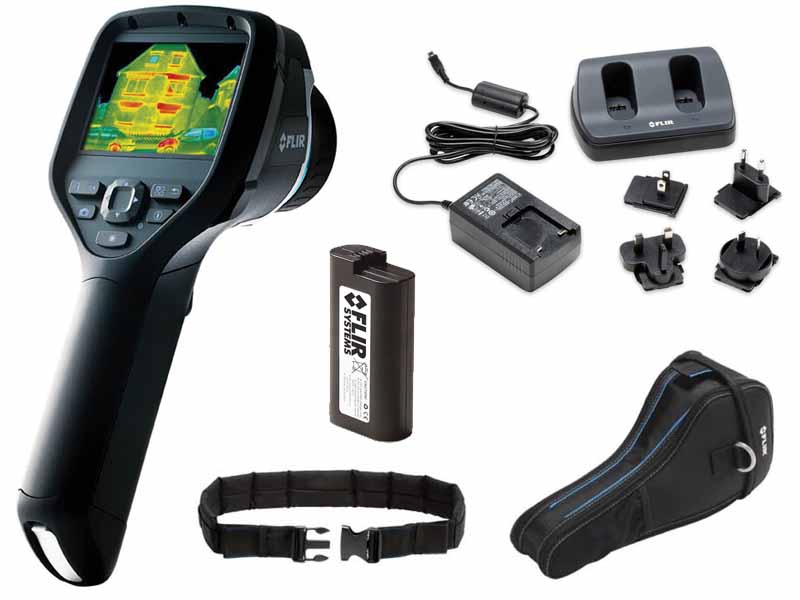

Buy the FLIR E40bx before June 30th 2013 and receive a free extra battery pack, twin desktop charger with universal plugs, tool belt and carry pouch.

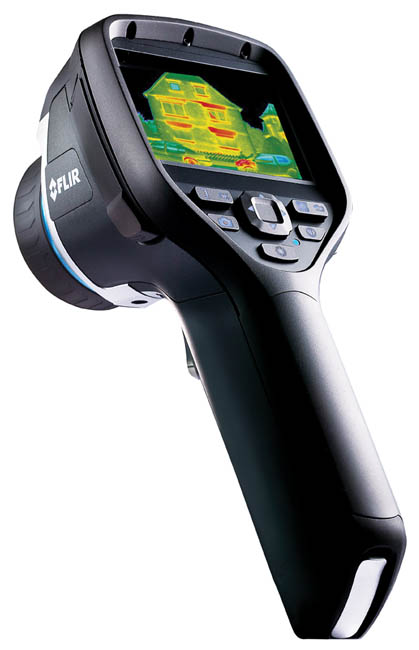

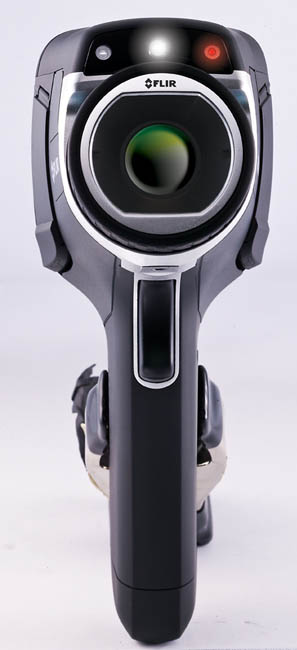

The FLIR E40bx thermal imaging camera for building applications features WiFi connectivity enabling transfer of images to smartphones and PC tablets. The new rugged design means the camera has now been drop tested to 2m.

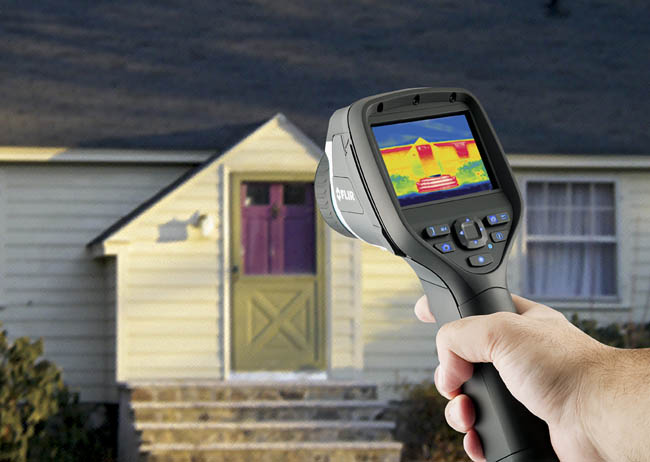

The additional features of the FLIR E40bx make location of a wide range of building issues easier. Areas of heat loss, leaking pipes, water ingress on a flat roof, or air gaps can all be easily spotted. The improved thermal sensitivity of 45mK also means much smaller temperature differences can be seen. With the range of building specific cameras, you also get an insulation limit, which quickly shows up areas of insulation breakdown, and a dewpoint alarm which is useful for locating areas where damp and mold is likely to occur.
Extra camera features include 3 measurement spots and 3 area boxes which can be added to the image in real time, making comparison of objects even faster. Also available is the Delta T, or difference temperature function, allowing you to take a reference image and make comparisons against it.
Text comments can be added to the IR images, either from a pre-defined list or the soft keyboard on the touchscreen. Up to 60 seconds of voice annotation can also be added to each image, via Bluetooth connectivity.
Flir's Meterlink technology has also been incorporated into the E40 camera, allowing the transfer of data from an Extech EX845 clamp meter, or Extech MO297 moisture meter, adding this information to the IR image.
New Software Integrates with Tablet PCs
FLIR now have a new iPhone & iPad app, FLIR Viewer, which allows the images to be wirelessly transferred from the camera. This allows you to email images for colleagues or clients when a quick decision or second opinion is needed. This app is available for both iPhone and Android systems and is free to download.
Interchangeable Lenses
With the New FLIR E40bx camera, you can also purchase additional lenses, allowing the camera to be adapted for almost any situation, whether you need a close-up lens for enclosed spaces, a telescopic lens for working at distance, or a wide angle lens to cover a larger area.
FLIR E40 Key Features:
160 x 120 Pixel Thermal Image Resolution
45mK thermal sensitivity
1x - 2x digital zoom
High quality 3.1 Megapixel Visual Camera
Thermal / Digital Picture-in-Picture functionality
Laser Pointer for accurate location of hot or cold spots
Voice Annotation - up to 60 seconds per image
Text comments can be added from a pre-defined list or soft keypad
Thumbnail Image Gallery, makes observing and inspecting faster and easier
High Accuracy: +/- 2% or +/- 2°C of reading
3.5" LCD Touch Screen
Built-In LED Light for better quality visual images
Long Life 4 hour Li-Ion battery
Interchangeable Lenses, options for telephoto & wide angle available
MPEG & Radiometric Video Streaming via USB or composite video out
MPEG4 video recording to SD card
Which Camera Is Right For You?
Choosing the right camera can be difficult. At Instrotech we understand the capabilities of all the models and can help you in selecting the right model for your application. Our qualified technical sales team are on hand to answer your questions and give a product demonstration if required. Please contact us on 01923 442244 for further details.
Accessories
Specification
Temperature Range: -20°C to +120°C
Temperature Accuracy: +/- 2°C or +/- 2% of reading
Image Storage: 1000 Images (microSD card included)
Copy To USB function, images transferred easily to USB memory stick
Infrared Window Correction: Infrared windows are often used to allow safe viewing of electrical cabinets
Emissivity: Emissivity Table; 0.01 to 1.0 adjustable
Field of View / Minimum Focus Distance: 25° x 19° / 0.4m
Video Output: MPEG-4, via USB or Composite Video Out
Image Modes: Thermal, Visual, Fusion
Fusion (Picture-in-Picture): Fixed in Centre of Screen
Digital Camera: 3.1 Megapixels with LED Light
Laser / Classification: Yes / Class 2
Set-up Controls: Date / Time, °C / °F, 21 Languages
Measurement Modes: 3 Spots (with correction for emissivity and reflected temperature)
3 Area Boxes (Min/Max/Avg), Isotherm (above/below selected temperature interval)
Delta Temperature Function, Measure Differences Between Measurement Functions or Reference Image
Alarms: Insulation Limit & Dewpoint Alarms
Voice Annotation: 60 Seconds Per Image, Via Bluetooth
Text: via Pre-Defined List or Soft Keyboard on Touchscreen
Battery Type: Li-Ion
Battery operating time: 5 hours, Display shows battery status
Charging system: In camera, AC adapter; 3 hours to 90% capacity
AC operation: AC adaptor 90-260VAC, 50/60Hz
Operating temperature range: 0°C to 50°C (32°F to 122°F)
Storage temperature range: -40°C to 70°C (-40°F to 158°F)
Humidity: Operating and storage 20% to 80%, non-condensing, IEC 359
Shock: 25G, IEC 60068-2-29
Vibration: 2G, IEC 60068-2-6
Dimensions/Weight: 246 x 97 x 184mm / 825g, including battery
Item Contents
FLIR E40bx
25° Lens
2 x Li-Ion Batteries
Twin Desktop Charger
Soft Carry Pouch
Tool Belt
FLIR Tools Software
2GB SD Card
USB Download Lead
Video Cable
Printed Getting Started Guide
Instruction Manual on CD ROM
Calibration Certificate
Hard Carry Case
Applications
You can request your FREE Thermography Application Guides here, choose from a selection of applications including building surveys, industrial surveys, renewable energy and automation processes.
Click on a link below view the application notes in pdf format.
