Buy the FLIR E30 before 30th June 2013 and receive a free extra battery, twin desktop charger, soft carry pouch and tool belt.
The FLIR E30 features a 2.0 Megapixel digital camera and temperature range up to +350°C. The new rugged design has been improved and is now drop tested to 2m.
The FLIR E30 now opens up affordable thermal imaging to everyone. This ergonomically designed, lightweight thermal imaging camera features a large touchscreen LCD display, 60Hz image frequency, tripod mount (optional adaptor required), more colour palettes and increased useability.

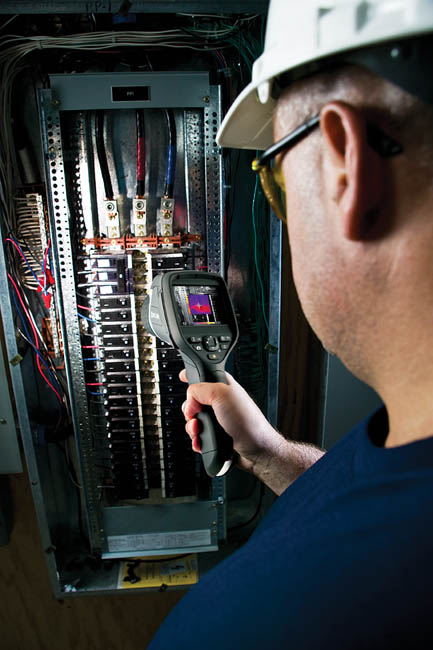

With more electricians carrying out thermal surveys as part of their regular inspection works, the need for easy-to-use cameras has become more widespread. With the Flir E30 you can take radiometric thermal images of distribution boards, control panels, busbars and more in order to spot faults or loose connections quickly, saving you time and money when carrying out maintenance works. The images are stored in Jpeg format and can easily be transferred to a PC.
Interchangeable Lenses
With the FLIR E30 camera, you can also purchase additional lenses, allowing the camera to be adapted for almost any situation, whether you need a close-up lens for enclosed spaces, a telescopic lens for working at distance, or a wide angle lens to cover a larger area.
FLIR E30 Key Features:
160 x 120 Pixel Thermal Image Resolution
100mK thermal sensitivity
High quality 2.0 Megapixel Visual Camera
Thumbnail Image Gallery, makes observing and inspecting faster and easier
High Accuracy: +/- 2% or +/- 2°C of reading
3.5" LCD Touch Screen
Built-In LED Light for better quality visual images
Long Life 4 hour Li-Ion battery
Interchangeable Lenses, options for telephoto & wide angle available
Which Camera Is Right For You?
Choosing the right camera can be difficult. At Instrotech we understand the capabilities of all the models and can help you in selecting the right model for your application. Our qualified technical sales team are on hand to answer your questions and give a product demonstration if required. Please contact us on 01923 442244 for further details.
Accessories
Specification
Temperature Range: -20°C to +120°C / 0° to +350°C
Temperature Accuracy: +/- 2°C or +/- 2% of reading
Image Storage: 1000 Images (microSD card included)
Copy To USB function, images transferred easily to USB memory stick
Infrared Window Correction: Infrared windows are often used to allow safe viewing of electrical cabinets
Emissivity: Emissivity Table; 0.01 to 1.0 adjustable
Field of View / Minimum Focus Distance: 25° x 19° / 0.4m
Video Output: MPEG-4, via USB or Composite Video Out
Image Modes: Thermal Only
Digital Camera: 2.0 Megapixel with LED Light
Laser / Classification: Yes / Class 2
Set-up Controls: Date / Time, °C / °F, 21 Languages
Measurement Modes: 1 Spot (with correction for emissivity and reflected temperature)
1 Area Box (Min/Max/Avg), Isotherm (above/below selected temperature interval)
Battery Type: Li-Ion
Battery operating time: 5 hours, Display shows battery status
Charging system: In camera, AC adapter; 3 hours to 90% capacity
AC operation: AC adaptor 90-260VAC, 50/60Hz
Operating temperature range: 0°C to 50°C (32°F to 122°F)
Storage temperature range: -40°C to 70°C (-40°F to 158°F)
Humidity: Operating and storage 20% to 80%, non-condensing, IEC 359
Shock: 25G, IEC 60068-2-29
Vibration: 2G, IEC 60068-2-6
Dimensions/Weight: 246 x 97 x 184mm / 825g, including battery

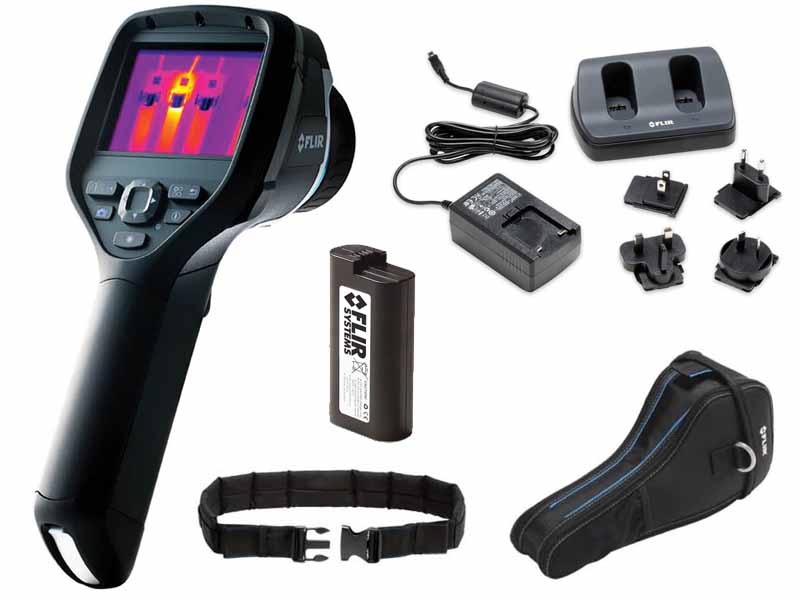

Item Contents
FLIR E30
25° Lens
2 x Li-Ion Batteries
Twin Desktop Charger
Soft Carry Pouch
Tool Belt
FLIR Tools Software
2GB SD Card
USB Download Lead
Video Cable
Printed Getting Started Guide
Instruction Manual on CD ROM
Calibration Certificate
Hard Carry Case
Applications
You can request your FREE Thermography Application Guides here, choose from a selection of applications including building surveys, industrial surveys, renewable energy and automation processes.
Click on a link below view the application notes in pdf format.
